GDS quality products are divided into three, based on the user designations

1. Steel plates for General Use

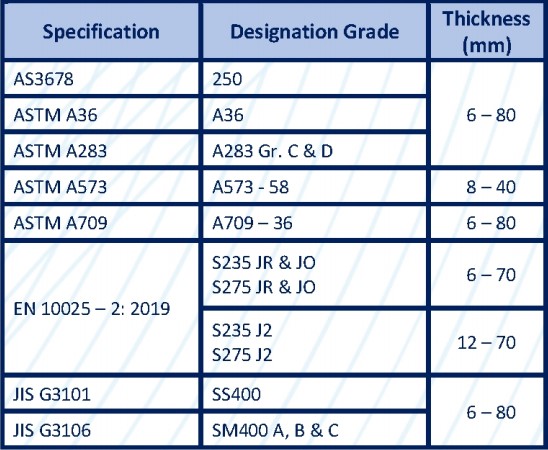

   • Low carbon Structural Steel Plates

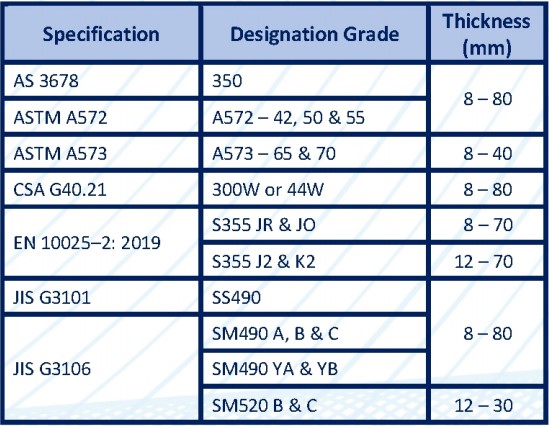

   • High Strength Low Alloy Structural Steel Plates

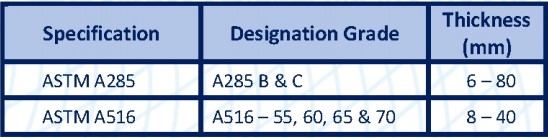

2. Steel plates for boilers and pressure vessels

3. Steel plates for ship building

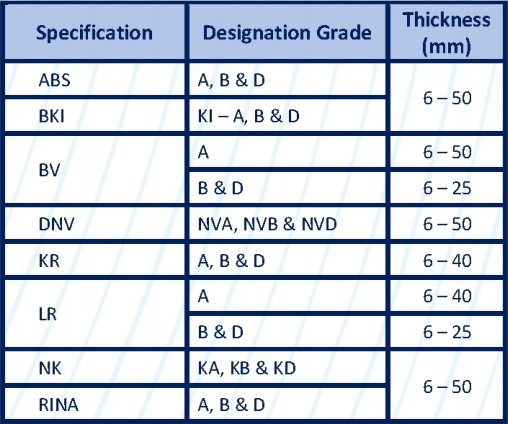

   • Hull Structural Steel Plates (Mild Steels)

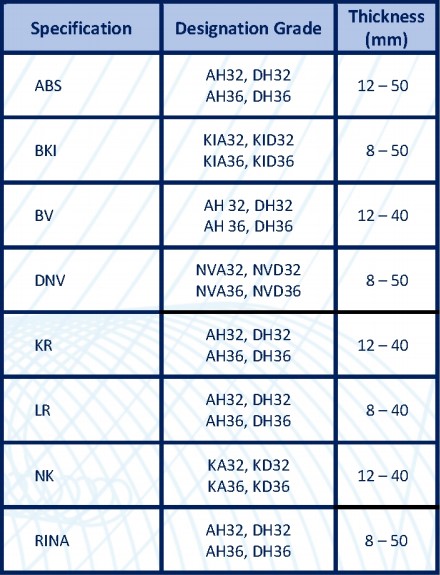

   • High Strength Hull Structural Steel Plates (High Tensile Steels)


Dimension and Shape

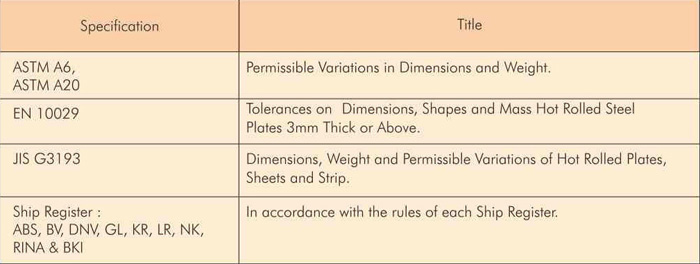

GDS steel plates meet the following tolerance requirements specification for the shape and dimension, but other specifications depend on negotiation.

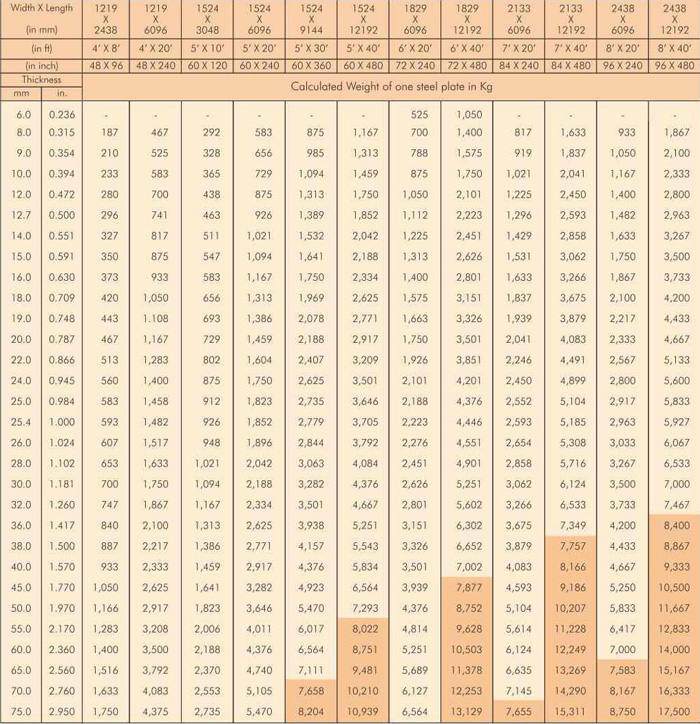

Weight of Steel Plates

1. Basic Weight: 7,85 kg/mm/m2 under JIS G3193.
2. Foot (12in): 304.80 mm
3. Inch : 25.40 mm
4. Max. Weight of one GDS Steel Plate : 7,400 Kgs
5. Orders for GDS Steel Plates beyond the range shown in the table above are subject to negotiation.
6. Out of GDS product mix ranges
